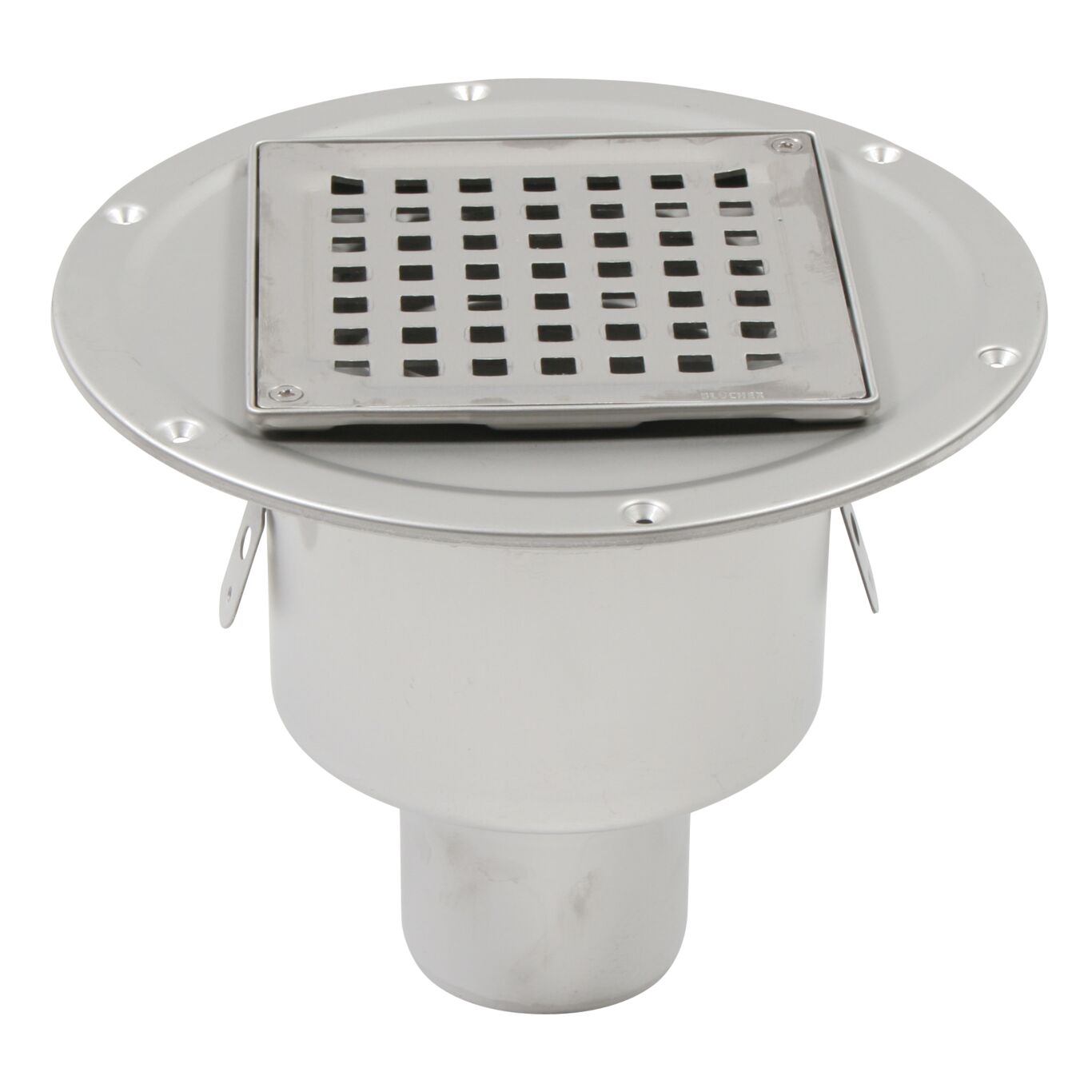

ADJUSTABLE SHOWER DRAIN SQUARE - (350.300.075 S)
×
![]()
Part Of the Series: Drain-Liquid membrane-145
Type no.: 350.300.075 S
EAN no.: 5705499105353
VVS no.: 153585143
RSK no.: 7119393
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 220 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 1,55 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
