ADJUSTABLE LOWER PART MULTI FOR TRIO - (250.260.075 V)
×
![]()
Part Of the Series: MULTI lower part-triangular
Type no.: 250.260.075 V
EAN no.: 5705499121537
RSK no.: 7119835
NRF no.: 3394609
LVI no.: 3303559

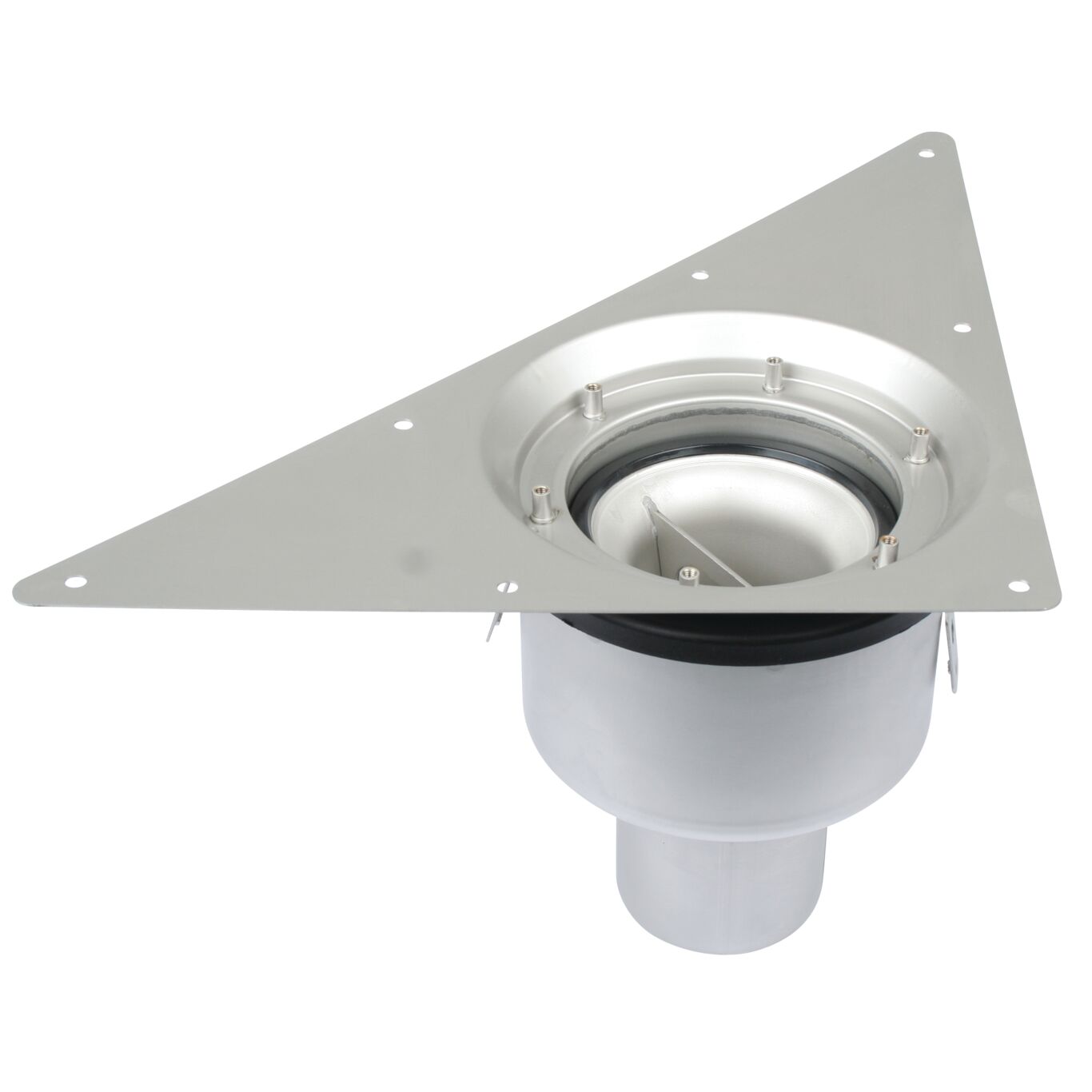

ADJUSTABLE LOWER PART MULTI FOR TRIO
-With removable water trap, free placing
-Flange: triangular
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301

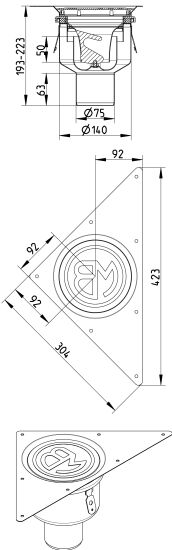

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 223 |
| Minimum Height (mm) | 193 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1,60 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
