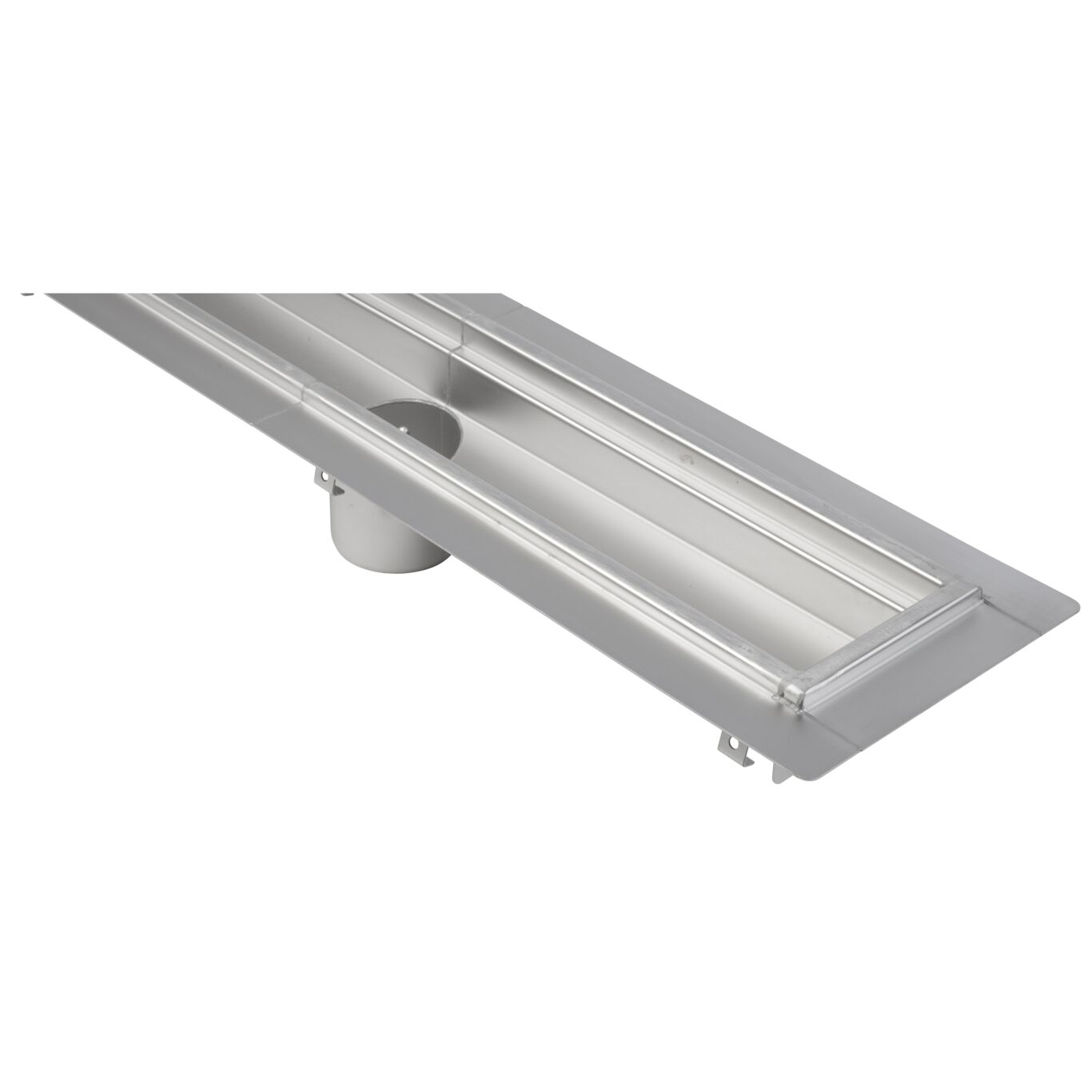

CHANNEL 200x2000 CENTER OUTLET - (674DH020-10BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 674DH020-10BA
EAN no.: 5705499130980
Size: 200x2000
CHANNEL 200x2000 CENTER OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 200x2000 |
| Weight (kg) | 18,15 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
