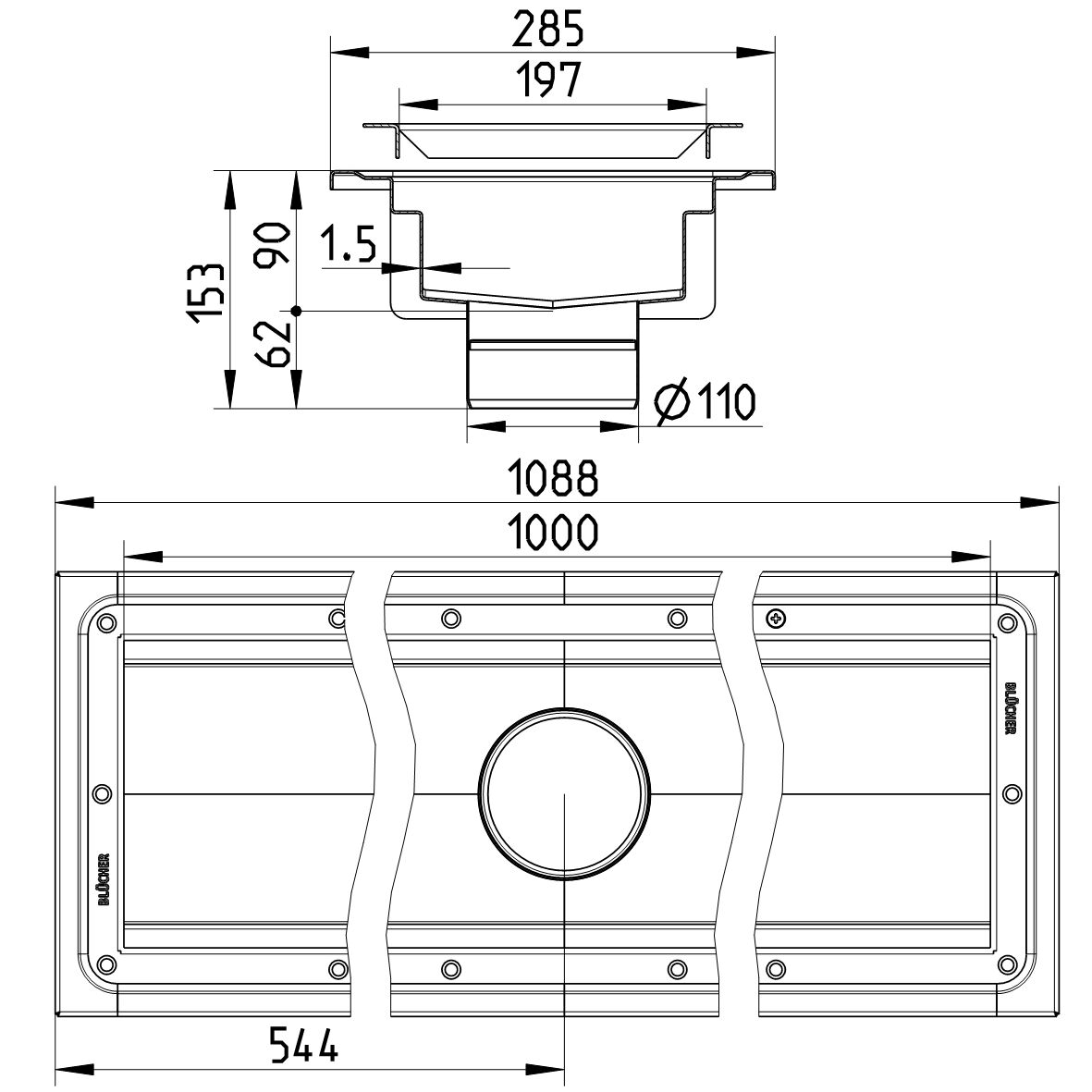

CHANNEL 200x1000 CENTER OUTLET - (672DH010-05BA)
Part Of the Series: Channel-Vinyl
Type no.: 672DH010-05BA
EAN no.: 5705499130256
Size: 200x1000
CHANNEL 200x1000 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 152 |
Outlet Box | No |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 200x1000 |
Weight (kg) | 7,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
