KITCHEN CHANNEL 400x400 - (660FH004-06)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660FH004-06
EAN no.: 5705499126174
Size: 400x400

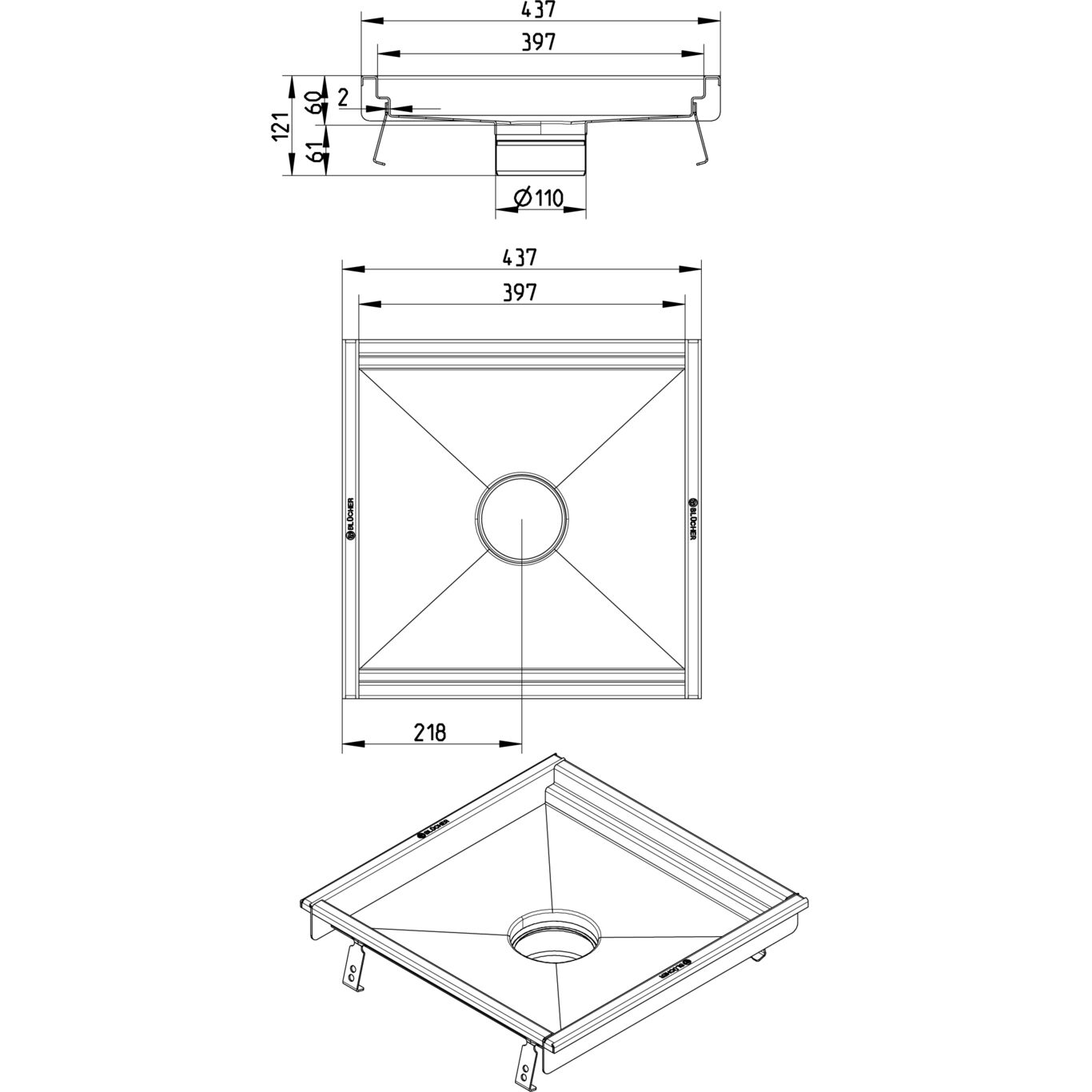

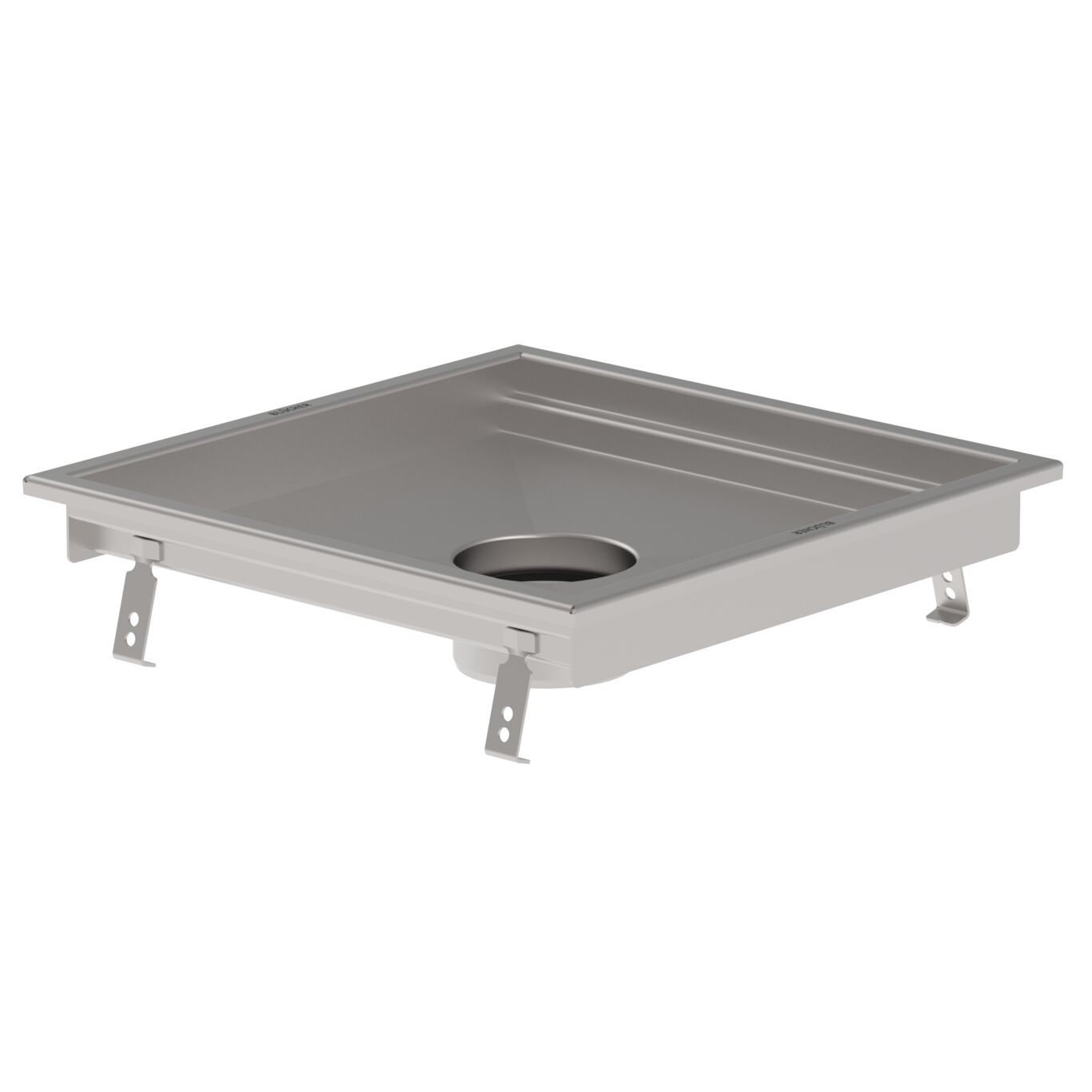

KITCHEN CHANNEL 400x400
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 121 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 400x400 |
| Weight (kg) | 9,08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
NO - PS3079-21
US - NSF ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 US - NSF/ANSI/3-A 14159-1-Meat and Poultry PL - Hygienic Certificate - All Products
