ADJUSTABLE SHOWER DRAIN SQUARE - (150.300.110 S)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 150.300.110 S
EAN no.: 5705499104912
VVS no.: 153321146
LVI no.: 3305759
Size: 145x145

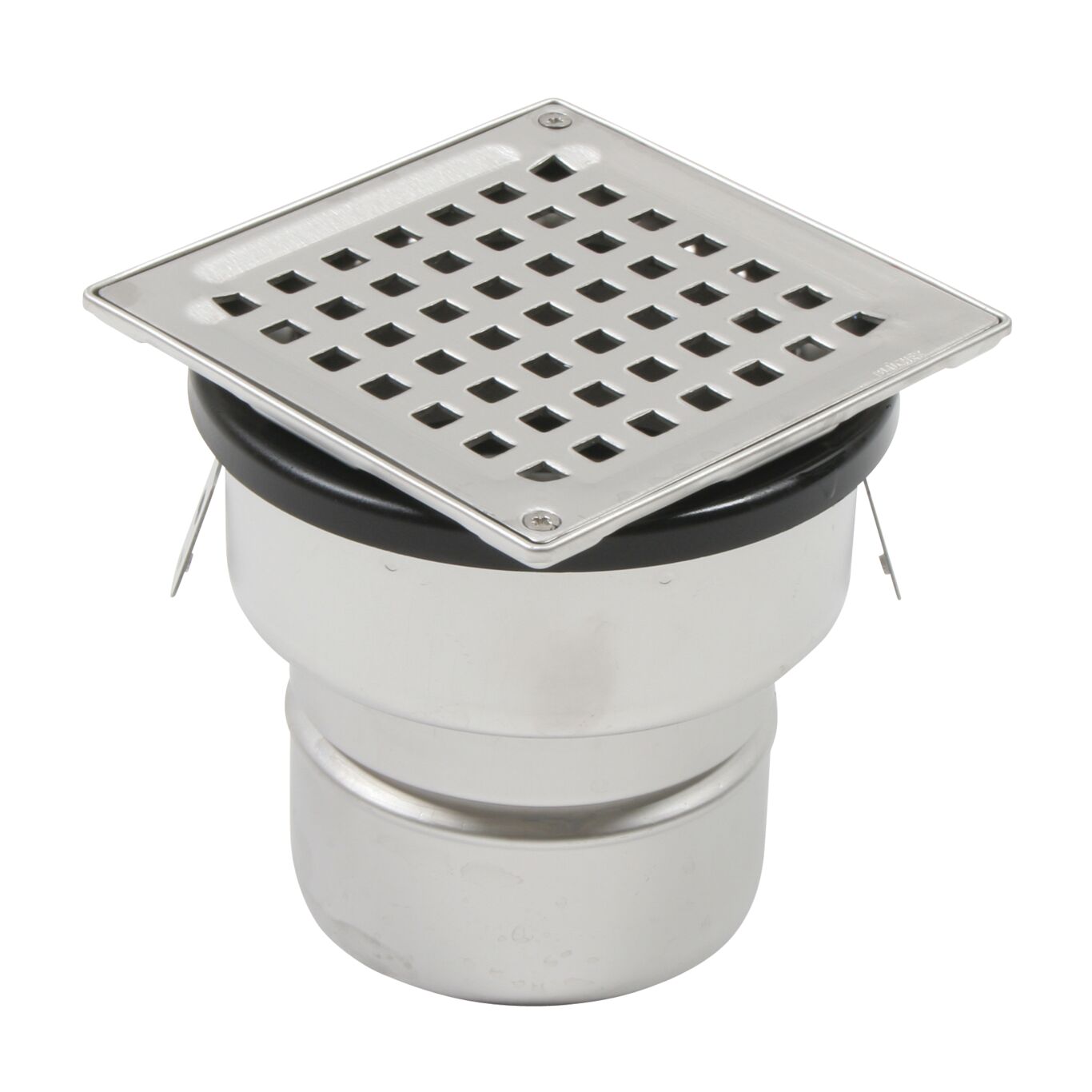

ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 182 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 1,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
