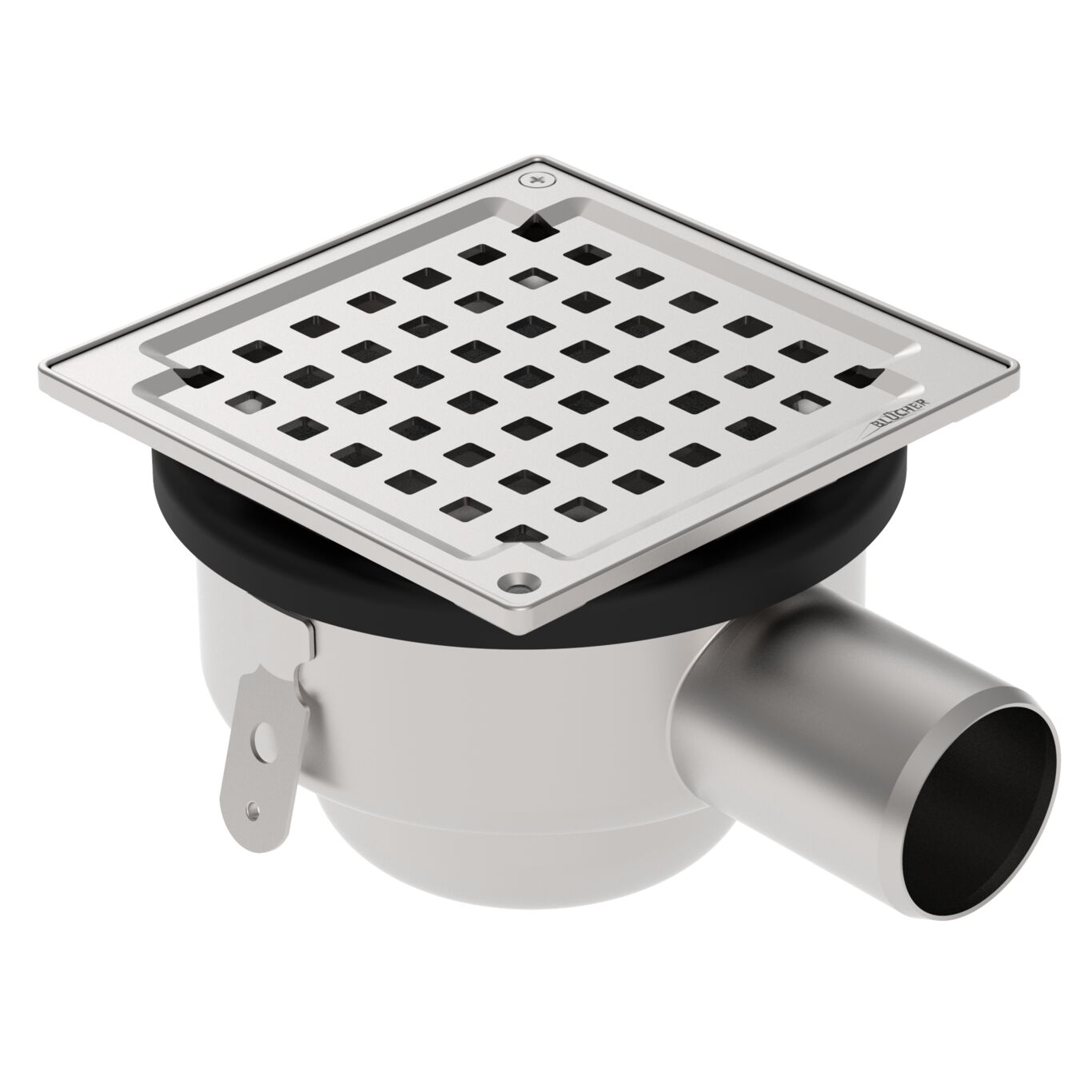

ADJUSTABLE SHOWER DRAIN SQUARE, LOW - (114.300.050)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 114.300.050
EAN no.: 5705499118056
VVS no.: 153327112
NRF no.: 3394512
Size: 145x145

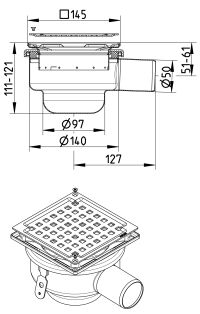

ADJUSTABLE SHOWER DRAIN SQUARE, LOW
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 121 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 1,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
