ADJUSTABLE SHOWER DRAIN TRIO - (155.370.110)
×
![]()
Part Of the Series: Drain-No membrane-Triangular
Type no.: 155.370.110
EAN no.: 5705499121162

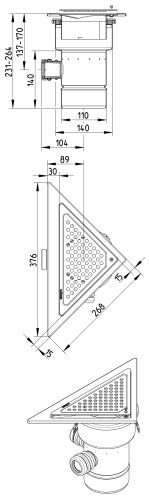

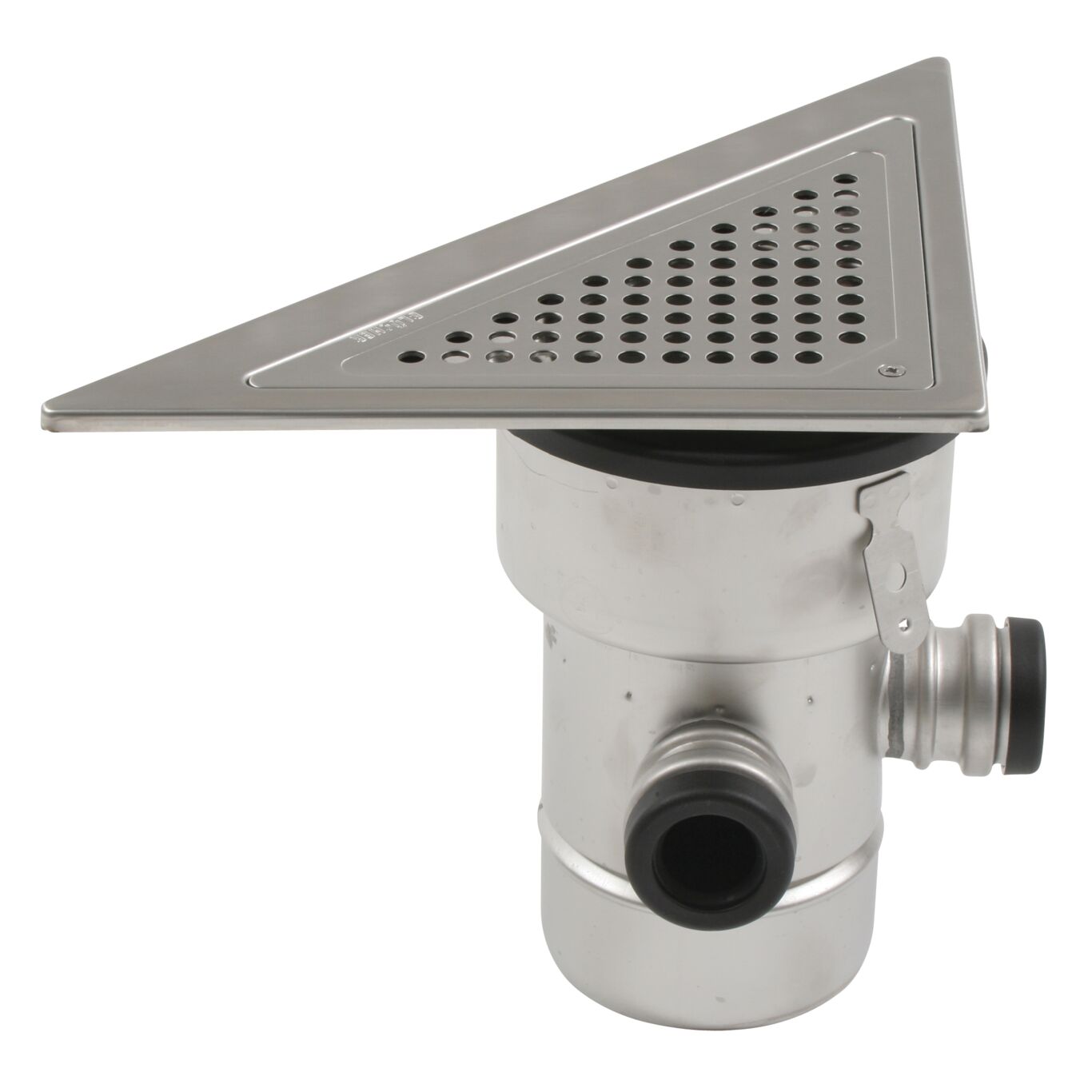

ADJUSTABLE SHOWER DRAIN TRIO
-With side inlets, for installation along wall
-Floor: concrete and tiled
-No membrane, frame: triangular
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Installation | Along wall |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 264 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 231 |
| Number of Inlets | 2 (Ø32/40mm) |
| Number of Screw Holes | 1 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Triangular |
| Weight (kg) | 1,76 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
