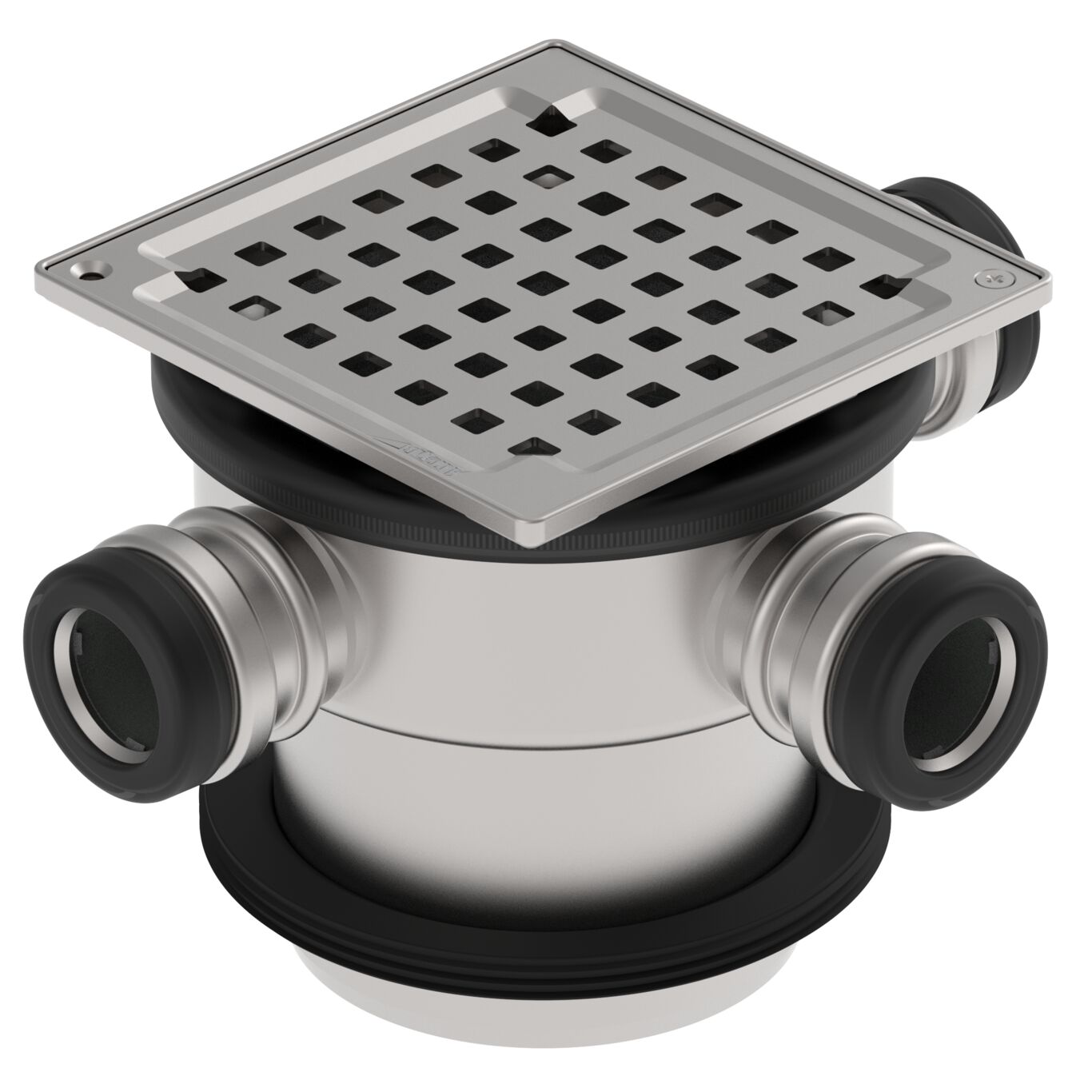

UPPER PART MARINE - (471.310.110 S)
×
![]()
Part Of the Series: Marine-upper part-145
Type no.: 471.310.110 S
EAN no.: 5705499141603
Size: 145x145
UPPER PART MARINE
-With Side Inlets
-Floor: Tiled and Wooden
-Frame: 145x145mm
-Stainless Steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Tiled / Wooden |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 159 |
| Minimum Height (mm) | 149 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 1,44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
