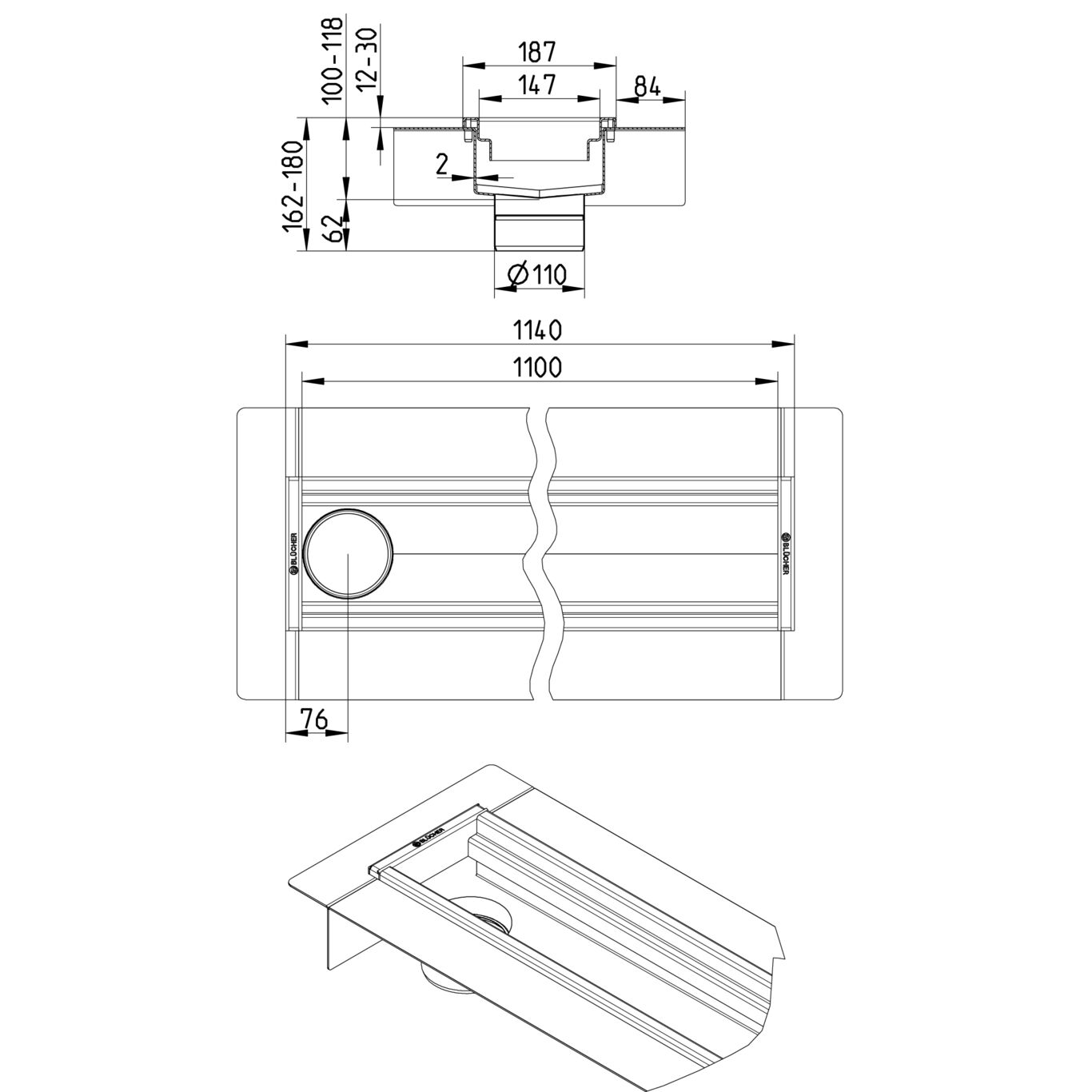

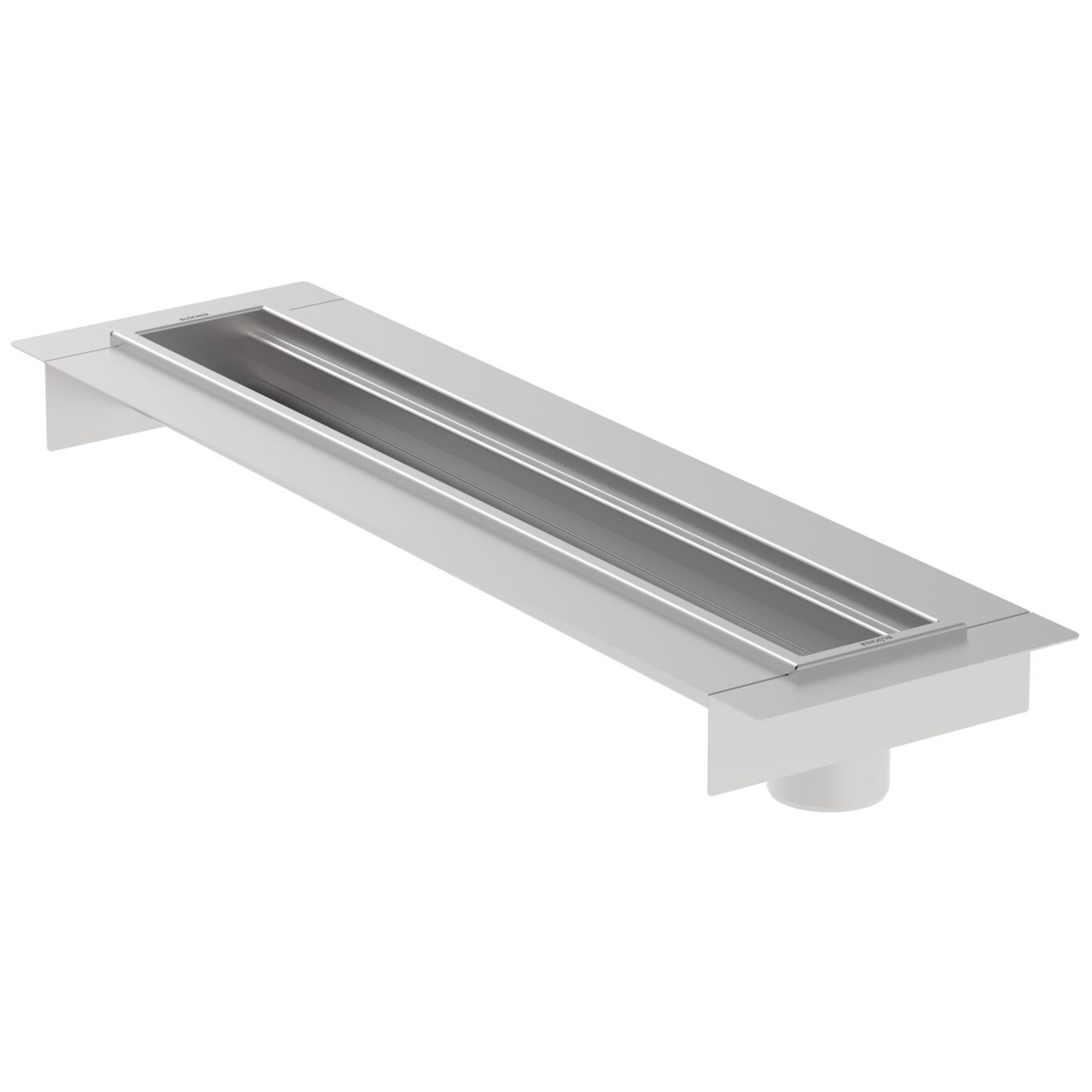

CHANNEL 150x1100 END OUTLET - (678CH011-00BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 678CH011-00BA
EAN no.: 5705499135145
RSK no.: 7121809
LVI no.: 3304950
Size: 150x1100
CHANNEL 150x1100 END OUTLET
-Adjustable
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 180 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 162 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x1100 |
| Weight (kg) | 14,20 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
