CHANNEL 150x2000 END OUTLET - (670CH020-00BA)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670CH020-00BA
EAN no.: 5705499125740
RSK no.: 7121768
NRF no.: 3397067
Size: 150x2000
CHANNEL 150x2000 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

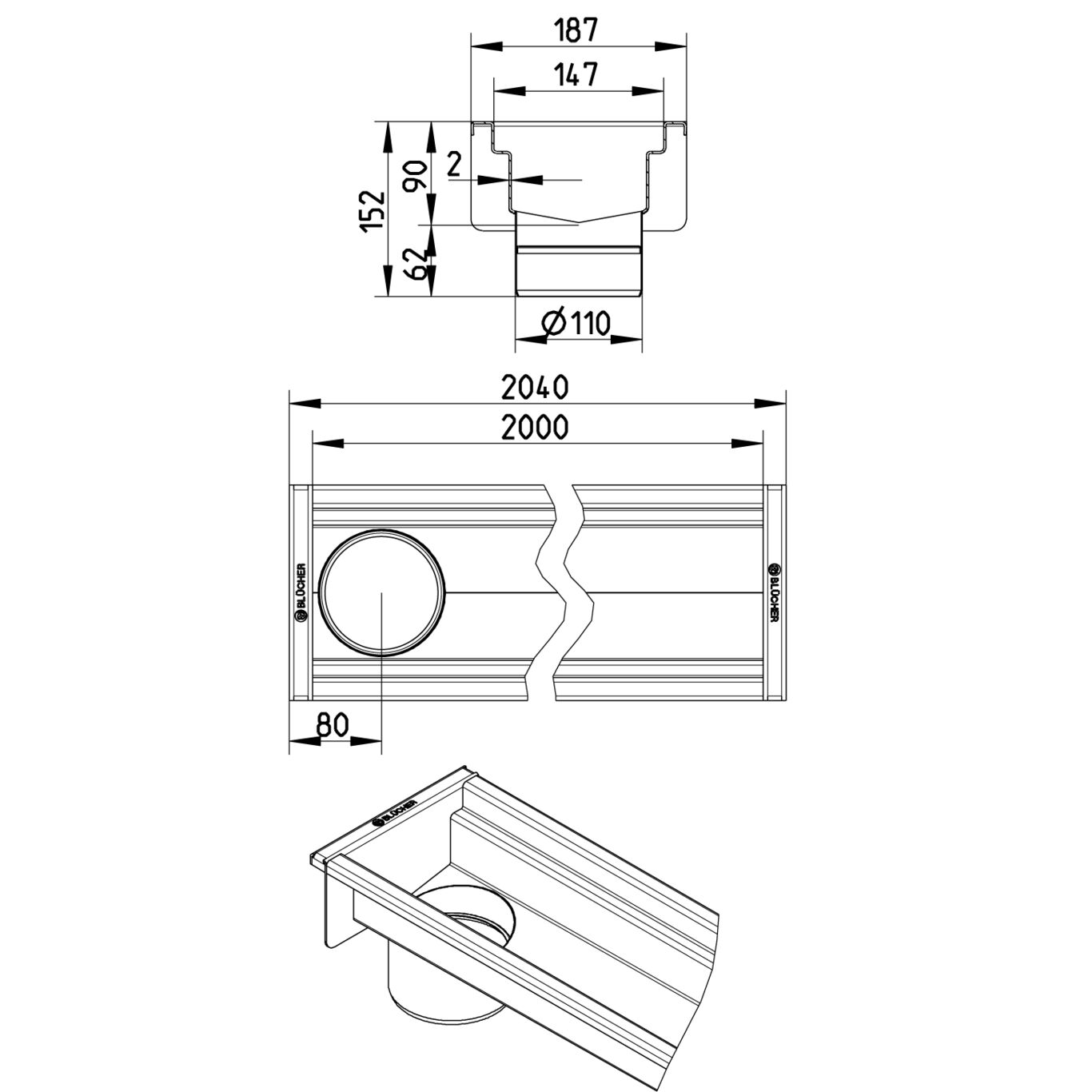

| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x2000 |
| Weight (kg) | 11,95 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
US - NSF
NO - PS3079-21
