LOWER PART MULTI - (260.200.075 VS)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 260.200.075 VS
EAN no.: 5705499105926
RSK no.: 7120177
LVI no.: 3304203

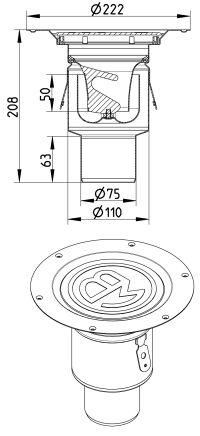

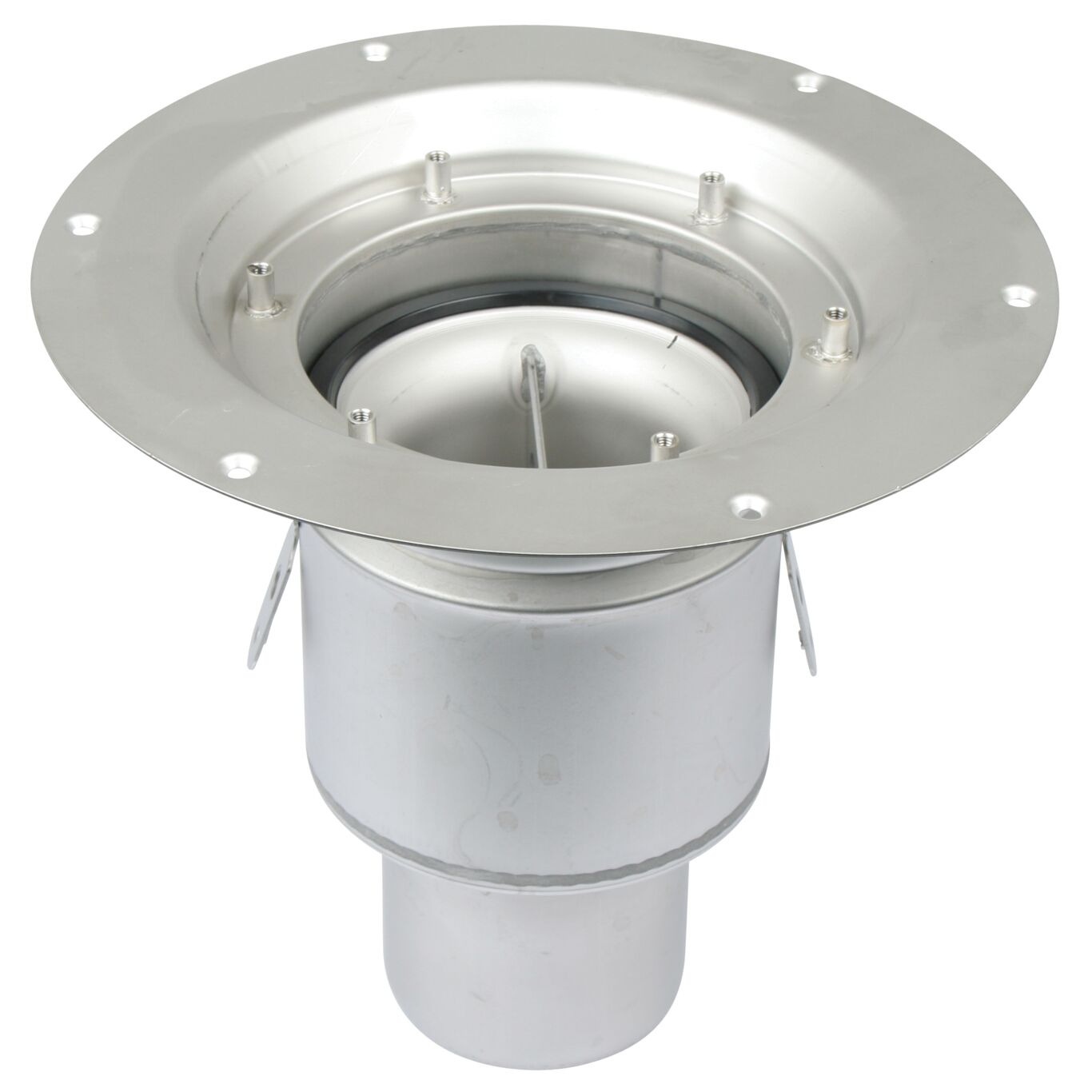

LOWER PART MULTI
-With removable water trap
-Floor: vinyl
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 208 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1,16 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
