ADJUSTABLE LOWER PART MULTI - (211.200.075)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 211.200.075
EAN no.: 5705499105698
RSK no.: 7119280

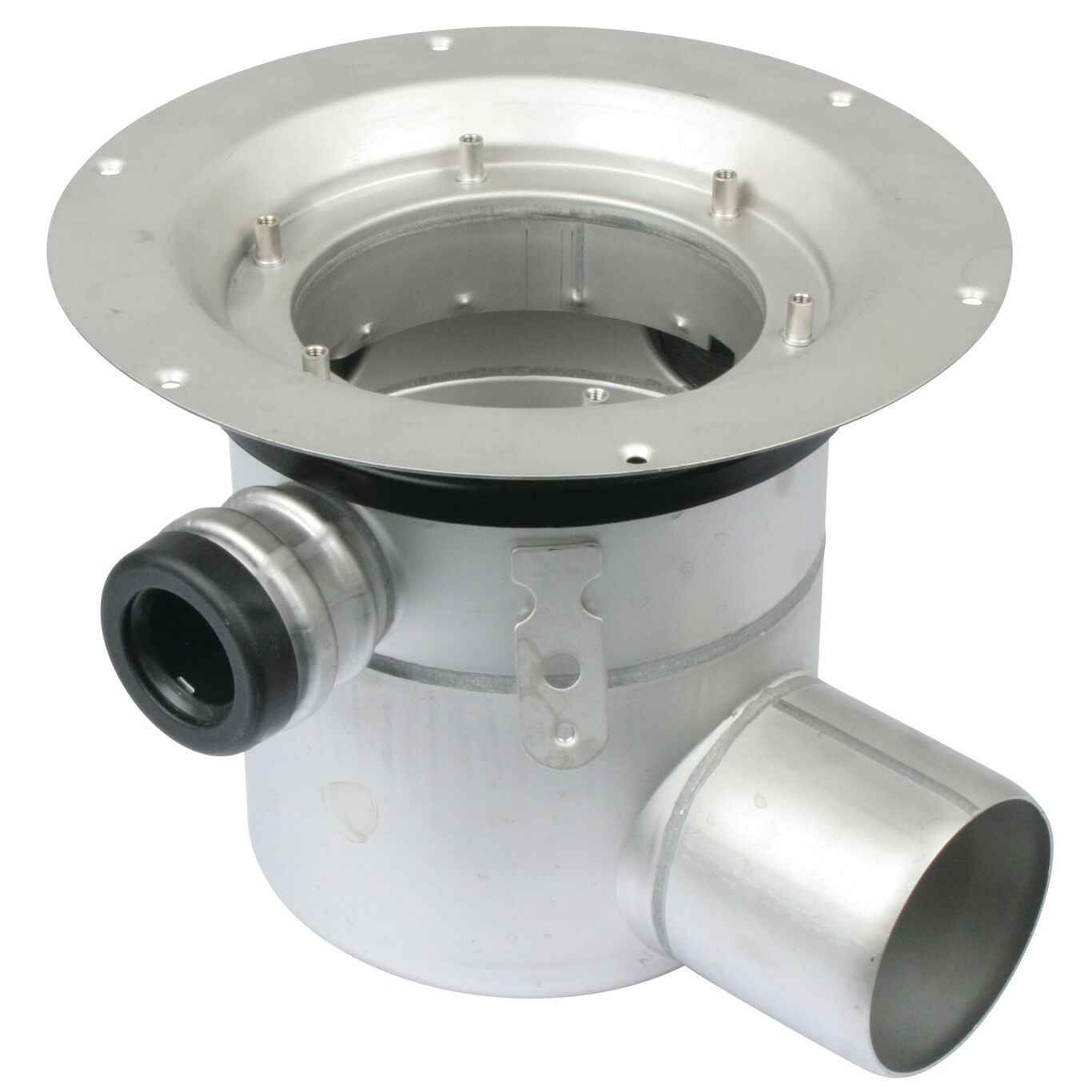

ADJUSTABLE LOWER PART MULTI
-With side inlets
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301

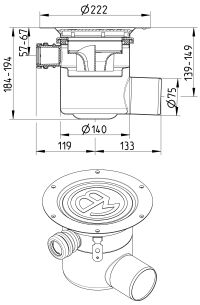

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 194 |
| Minimum Height (mm) | 184 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,74 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
